L500
PART #SUPR302000
Rated Capacity: 500 GPM
Weight: 64 lbs. (without adapter)

  Assembly includes the following:


PART NUMBER

DESCRIPTION

QTY.

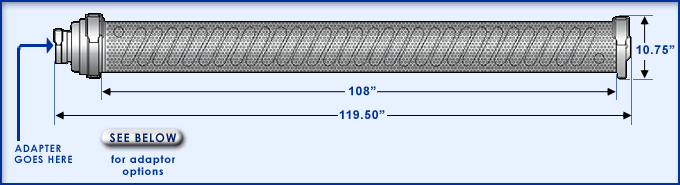

  SUPR996000 500 Body Assembly (10”diameter x 108”long, 500GPM capacity) 1
  SULV002450 10” Clamp with Mounting Tab 2
  CLBL660006 6” Clamp without Mounting Tab 1
  SULV002465 10” O-Ring Set 1
  SULV002475 6” O-Ring (Single) 1
  SULV001014 10” x 6” Female Adapter (up through 6” Adapters) 1
  SULV001016 10” x 8” Female Adapter (for 8” Adapters only) 1





ADAPTER OPTIONS: Select the adapter below to accommodate your existing line.



Compression Adapter

Companion Flange
 Adapter

Footvalve Adapter

PART NUMBER

COMPRESSION ADAPTER

QTY.
  SULV001035 5” Compression Adapter 1
  SULV001040 6” Compression Adapter 1
  SULV001050 8” Compression Adapter 1


PART NUMBER

150 lb. COMPANION FLANGE ADAPTER

QTY.
  SULV001600 5” Companion Flange Adapter 1
  SULV001700 6” Companion Flange Adapter 1
  SULV001800 8” Companion Flange Adapter 1


PART NUMBER

FOOTVALVE ADAPTER (with & without Footvalve)

QTY.
  SULV001070 5” Footvalve Adapter (without the Footvalve) 1
  SULV001080 6” Footvalve Adapter (without the Footvalve) 1
  SULV001012 8” Footvalve Adapter (without the Footvalve) 1
  SULV001110 5” Footvalve Adapter WITH a SFV5, 45Ί Footvalve 1
  SULV001120 6” Footvalve Adapter WITH a SFV6, 45Ί Footvalve 1
  SULV001130 8” Footvalve Adapter WITH a SFV8, 45Ί Footvalve 1


Other special order adapters are available. Call for a quote.
