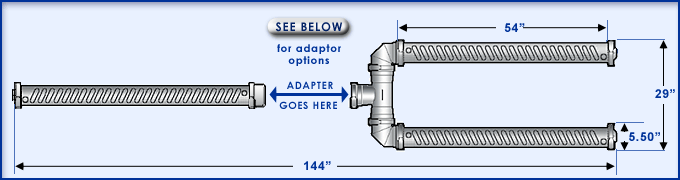

M-Y390
PART #SUPR206000
Rated Capacity: 390 GPM
Weight: 73 lbs. (without adapter)

  Assembly includes the following:


PART NUMBER

DESCRIPTION

QTY.


  SUPR994000 M-130 Body Assembly (5”diameter x 54”long, 130GPM capacity) 3
  SULVMMM200 5” Clamp with Mounting Tab 9
  SULVMMM275 5” O-Ring Set 6
  SULVMMK900 5” Tee (MxFxF) 1
  SULVMMJ100 5” Swivel Elbow 2





ADAPTER OPTIONS: Select the adapter below to accommodate your existing line.





Compression Adapter

Companion
Flange Adapter

Footvalve Adapter

PART NUMBER

COMPRESSION ADAPTER

QTY.
SULVMMJ025 6” Compression Adapter 1

PART NUMBER

150 lb. COMPANION FLANGE ADAPTER

QTY.
SULVMMJ035 6” Companion Flange Adapter 1

PART NUMBER

FOOTVALVE ADAPTER (with & without Footvalve)

QTY.
SULVMMJ045 6” Footvalve Adapter (without the Footvalve) 1
SULVMMJ055 6” Footvalve Adapter (with a SFV6, 45 degree foot valve) 1


Other special order adapters are available. Call for a quote.
