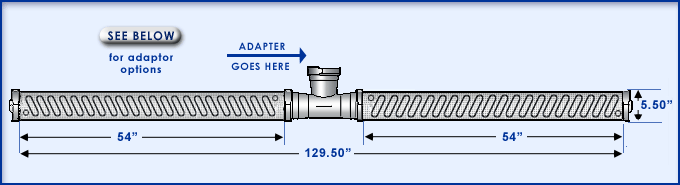

M-T260
PART #SUPR204000
Rated Capacity: 260 GPM
Weight: 43 lbs.
Complete without an adapter
(add adapter of choice for total screen cost.)

  Assembly includes the following:


PART NUMBER

DESCRIPTION

QTY.


  SUPR994000 M-130 Body Assembly (5”diameter x 54”long, 130GPM capacity) 2
  SULVMMM200 5” Clamp with Mounting Tab 5
  SULVMMM275 5” O-Ring Set 3
  SULVMMK800 5” Tee with Lift Strap 1





ADAPTER OPTIONS: Select the adapter below to accommodate your existing line.



MIPT Adapter


Compression Adapter


Companion
Flange Adapter


Footvalve Adapter

PART NUMBER

MIPT ADAPTER

QTY.
  SULVMMH370 4” MIPT Adapter 1
  SULVMMH380 5” MIPT Adapter 1


PART NUMBER

COMPRESSION ADAPTER

QTY.
  SULVMMI200 4” Compression Adapter 1
  SULVMMI300 5” Compression Adapter 1
  SULVMMI350 6” Compression Adapter 1


PART NUMBER

150 lb. COMPANION FLANGE ADAPTER

QTY.
  SULVMMI800 4” Companion Flange Adapter 1
  SULVMMI900 5” Companion Flange Adapter 1
  SULVMMI950 6” Companion Flange Adapter 1


PART NUMBER

FOOTVALVE ADAPTER (with & without Footvalve)

QTY.
  SULVMMH500 4” Footvalve Adapter (without the Footvalve) 1
  SULVMMH550 5” Footvalve Adapter (without the Footvalve) 1
  SULVMMH575 6” Footvalve Adapter (without the Footvalve) 1
  SULVMMH650 4” Footvalve Adapter WITH a SFV5, 45Ί Footvalve 1
  SULVMMH700 5” Footvalve Adapter WITH a SFV6, 45Ί Footvalve 1
  SULVMMH750 6” Footvalve Adapter WITH a SFV7, 45Ί Footvalve 1


Other special order adapters are available. Call for a quote.
