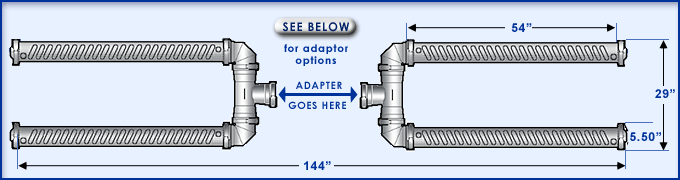

M-H520
PART #SUPR207000
Rated Capacity: 520 GPM
Weight: 114 lbs. (without adapter)

  Assembly includes the following:


PART NUMBER

DESCRIPTION

QTY.


  SUPR994000 M-130 Body Assembly (5”diameter x 54”long, 130GPM capacity) 4
  SULVMMM200 5” Clamp with Mounting Tab 10
  SULVMMM275 5” O-Ring Set 10
  SULVMMK900 5” Tee (MxFxF) 2
  SULVMMJ100 5” Swivel Elbow 4




ADAPTER OPTIONS: Select the adapter below to accommodate your existing line.





Compression Adapter

Companion
Flange Adapter

Footvalve Adapter

PART NUMBER

COMPRESSION ADAPTER

 QTY.
SULVMMJ025 6” Compression Adapter 1

PART NUMBER

150 lb. COMPANION FLANGE ADAPTER

 QTY.
SULVMMJ035 6” Companion Flange Adapter 1

PART NUMBER

FOOTVALVE ADAPTER (with & without Footvalve)

 QTY.
SULVMMJ045 6” Footvalve Adapter (without the Footvalve) 1
SULVMMJ055 6” Footvalve Adapter WITH a SFV6, 45º Footvalve 1


Other special order adapters are available. Call for a quote.
