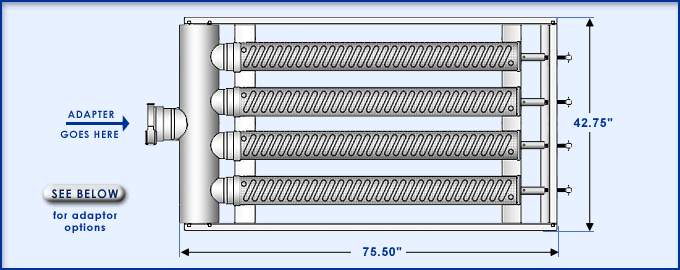

M-520 Framed
PART #SUPR402000
Rated Capacity: 520 GPM
Weight: 192 lbs. (without adapter)

  Assembly includes the following:


PART NUMBER

DESCRIPTION

QTY.


  SUPR997000 M-130 Body Assembly (5” diameter x 54”long, 130GPM capacity) 4
  SUPR600520 520 Screen Framed-Manifold Unit Complete (w/o screens) 1




ADAPTER OPTIONS: Select the adapter below to accommodate your existing line.



Compression Adapter

Companion Flange
 Adapter

Footvalve Adapter

PART NUMBER

COMPRESSION ADAPTER

 QTY.
  SULV001035 5” Compression Adapter 1
  SULV001040 6” Compression Adapter 1
  SULV001050 8” Compression Adapter 1


PART NUMBER

150 lb. COMPANION FLANGE ADAPTER

 QTY.
  SULV001600 5” Companion Flange Adapter 1
  SULV001700 6” Companion Flange Adapter 1
  SULV001800 8” Companion Flange Adapter 1


PART NUMBER

FOOTVALVE ADAPTER (with & without Footvalve)

 QTY.
  SULV001070 5” Footvalve Adapter (without the Footvalve) 1
  SULV001080 6” Footvalve Adapter (without the Footvalve) 1
  SULV001012 8” Footvalve Adapter (without the Footvalve) 1
  SULV001110 5” Footvalve Adapter WITH a SFV5, 45Ί Footvalve 1
  SULV001120 6” Footvalve Adapter WITH a SFV6, 45Ί Footvalve 1
  SULV001130 8” Footvalve Adapter WITH a SFV8, 45Ί Footvalve 1


Other special order adapters are available. Call for a quote.
