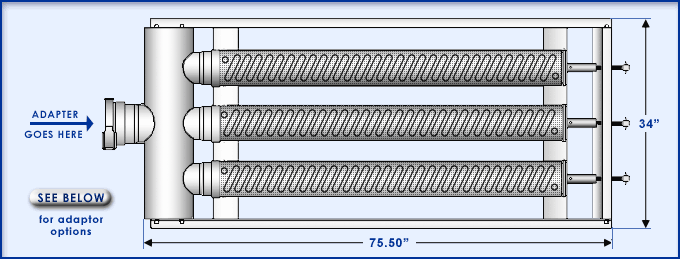

M-390 Framed
PART #SUPR401000
Rated Capacity: 390 GPM
Weight: 160 lbs. (without adapter)

  Assembly includes the following:


PART NUMBER

DESCRIPTION

QTY.


  SUPR997000 M-130 Body Assembly (5 diameter x 54 long, 130GPM capacity) 3
  SUPR600390 390 Screen Framed-Manifold Unit Complete (w/o screens) 1





ADAPTER OPTIONS: Select the adapter below to accommodate your existing line.



Compression Adapter

Companion Flange
 Adapter

Footvalve Adapter

PART NUMBER

COMPRESSION ADAPTER

QTY.
  SULV001033 4 Compression Adapter 1
  SULV001035 5 Compression Adapter 1
  SULV001040 6 Compression Adapter 1


PART NUMBER

150 lb. COMPANION FLANGE ADAPTER

QTY.
  SULV001550 4 Companion Flange Adapter 1
  SULV001600 5 Companion Flange Adapter 1
  SULV001700 6 Companion Flange Adapter 1


PART NUMBER

FOOTVALVE ADAPTER (with & without Footvalve)

QTY.
  SULV001060 4 Footvalve Adapter (without the Footvalve) 1
  SULV001070 5 Footvalve Adapter (without the Footvalve) 1
  SULV001080 6 Footvalve Adapter (without the Footvalve) 1
  SULV001100 4 Footvalve Adapter WITH a SFV4, 45 Footvalve 1
  SULV001110 5 Footvalve Adapter WITH a SFV5, 45 Footvalve 1
  SULV001120 6 Footvalve Adapter WITH a SFV6, 45 Footvalve 1


Other special order adapters are available. Call for a quote.
